Subsystems and components for ventilated facades

POSSIBLE VARIANTS OF SHEET METAL FLEXIBILITY

Any building construction can be without casting and sloping. Metal outflows and slopes serve not only for decorative finishing of external door and window apertures, socles and roofs, but also for their protection against moisture and premature destruction of building materials of these structural elements of building structures. We offer manufacturing of sheet metal products according to customer's size, with a wide range of colors.

Low tides


Low tide bottom

L - allowable length of the product up to 3 meters.
H - the size under the order.


Low tide top

L - allowable length of the product up to 3 meters.
H - the size under the order.


PROFILE FOR VENTILATED FACADES

Structurally, all ventilated facades include many elements: mounting brackets, horizontal and vertical profiles, hardware, insulation layer, facing layer.

Mounting profile Z shaped (angular profile)

Profile Z shaped, perfectly fulfills the function of finishing work on the facade and elements of contiguity joints ventilated facade. This profile helps to link sections of the facade, make a linkage of elements, perform the final work of the crate and corner units of the facade structure. It is produced in variations and thickness of metal from 1.0 to 1.2.

L - allowable length of the product up to 3 meters.
A, b, c - the size under the order.

Mounting profile G shaped (L-shaped guide)

Horizontal profile L-shaped, which is often called the corner for the facade or the L-shaped profile, is applied by the vertical or horizontal guide. It is suitable for fixing the horizontal lath of the ventilated facade, it perfectly copes with the weight of the subsurface lining as a whole and is made in painted form with a primer with a polymer coating or coloring in the color of the cladding to conceal the rustic, it is also possible to use this element without painting, however the service life in this case of the facade is reduced by half. Suitable for fixing the subsystem of ceramic granite, composite panels, metal cassettes, fiber cement slabs.

L - allowable length of the product up to 3 meters.
B, c - the size under the order.

Profile U shaped (omega profile)

The application of this hat profile, suitable for manufacturing a subsystem for ventilated facade, the profile is painted with a polymer coating in the production. With this profile, the facade system is securely attached to the base with brackets.

L - allowable length of the product up to 3 meters.
A, b, c, d - the size under the order.

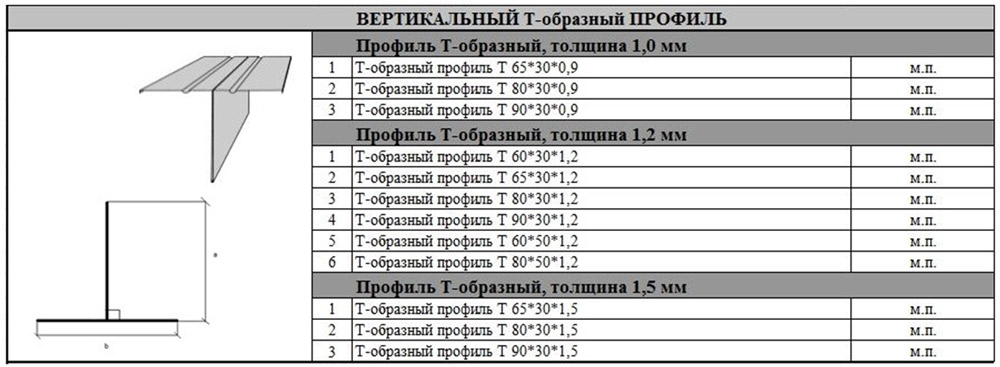

Mounting profile vertical basic T shaped (vertical guide)

The vertical guide is used in facade systems of vertical arrangement, suitable for a subsystem of a facade with different kinds of facing materials, serves as a hitch element for a vertical profile or as a separate element for a facade lath.

L - allowable length of the product up to 3 meters.
A, b - the size under the order.

Profile C shaped

It is used for ventilated facades and other structures in painted form and polymer coating, made of a thickness of 1.0 mm to 1.2 mm. from galvanized metal 08-PS.

Mounting bracket

Dimensions 90x80; 120x80; 150x80; 180x80; 230x80

Louvers

A is the width of the opening, b is the height of the opening

Jambs and cover strips

Jamb is used when there is space between the structure and the wall. The presence of a color scale on request will allow you to choose a suitable option for your interior. The cover is used if space between the window and the casing is present. The presence of a color scale on request will allow you to choose a suitable option for your interior. We propose to make the following types of cover strips: curly, simple (flat), asymmetrical, angular complex and simple.

L - allowable length of the product up to 3 meters.
Shelf size on request.
Material: zincified metal

Cover strip is used if space between window and jamb is present. The presence of a color scale on request will allow you to choose a suitable option for your interior.
We propose to make the following types of cover strips: curly, simple (flat), asymmetrical, angular complex and simple.

L - allowable length of the product up to 3 meters.
Shelf size on request.
Material: zincified metal

Internal cover strip


Internal finishing element


Inner element of the ridge


Outside finishing element of an antiaircraft lamp


Outside finishing element of an antiaircraft lamp


Outer element


Outer ridge element


Inner corner cover strip


Inner corner cover strip 1


Outside cornice edging


Outer corner cover strip


Parapet cover strip 1


Parapet cover strip 2


Complex cover strip


Wall cover strip


Joint of panels cover strip


Socle cover strip


Front strip
